The internet and web

  • The internet: fundamental network over which different communication technologies can work (including email, file transfer, the web). Generally regarded as those elements using the TCP/IP protocol (more later).
  • The web: a hypertext (linked text) system with embedded media based within/utilising the internet.

Java and the internet

  • Java first major language to be built for/after the web.
  • Web-based options (Applets, URLConnections, [JSP], [Servlets]).
  • Other network communication options.
  • To understand the web-based elements we need to first understand the basics of the web and webpages.

The web

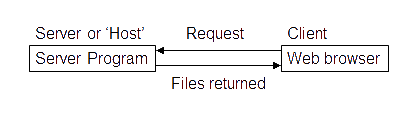

  • The web has a client-server architecture.

Webpages

  • As we've mentioned they're usually sent out by a web server to clients who ask for them, but you can open them directly on your harddrive.
  • They consist of text that will be displayed and tags that won't, which include formatting details or references to other files like images or java code.
  • The tags are referred to as the HyperText Markup Language (HTML).
  • Saved as text files with the suffix .html (or sometimes .htm).

A basic webpage


<HTML>

	<HEAD>
	    <TITLE>Title for top of browser</TITLE>
	</HEAD>

	<BODY>
	    <!--Stuff goes here-->
	</BODY>

</HTML>

  • The HEAD contains information about the page, the BODY contains the actual information to make the page.


The break tag breaks a line<BR />
like that.

<P>
The paragraph tags
</P>

leave a line.
This is <B>Bold</B>.
This is <I>Italic</I>

<IMG src="tim.gif" alt="Photo: Pic of Tim" width="50" height="50"></IMG>

<A href="index.html">Link text</A>

  • The text in the file will only be shown with the format set out in the tags. Any line breaks etc. won't show up on screen.

Good web design

  • Like any GUI, good web design concentrates on usability.
  • There are a number of websites that can help you - these are listed on the links page for this course.
  • See also the tutorial on the course pages.

Review

  • The web is a client-server based architecture.
  • It is used to link and distribute hypertexts and embedded media.
  • It runs on the internet.
  • The text is coded using the HyperText Markup Language.
