Most ABM tools require some degree of programming

Programming in NetLogo has been simplified

Similar to other programming languages, but with shortcuts

Other popular packages (e.g. Repast Simphony or MASON) require Java knowledge

If you are inspired to learn more...

Try: Code Academy

And: code.org.

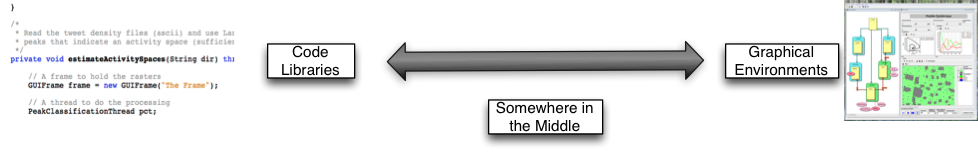

Software Tools / Platforms

What are they?

Pieces of software to help people build models

Wide range of tools

Computer code ('libraries')

Entire graphical environment

Somewhere in the middle

Computer code ('libraries')

Researchers write software to perform useful functions:

Draw graphs

Visualise the model

Manage the schedule

Great for programmers

Less time spend worrying about admin, more time on modelling

Examples:

MASON

Repast Simphony

Mageo

Loads of others listed here

Graphical Environments

Entirely visual - no programming needed

Most useful for non-programmers

Examples

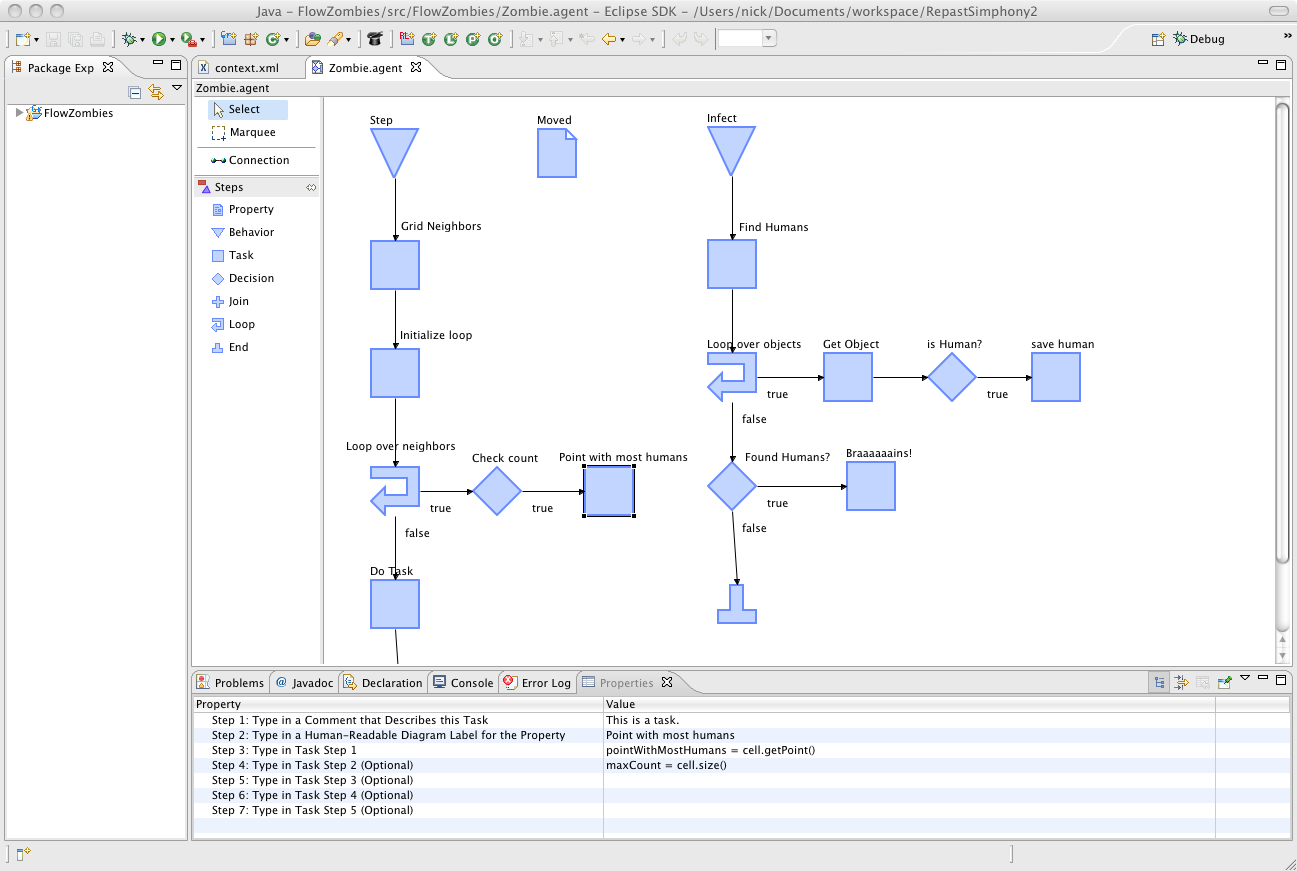

Agent Sheets

VisualBots

Repast Simphony

Modelling4All

Somewhere in the middle

Some code writing, some visual development

More powerful than purely visual tools, but easier to use.

Save time having to learn to do simple tasks and concentrate on model behaviour

e.g. NetLogo

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

Base on Star Logo.

Popular teaching tool

Designed to be used by children

But also powerful

Developed by The Center for Connected Learning (CCL) and Computer-Based Modeling at Northwestern University

Free!

Uses Java in the background

Multi platform

Can be converted into applets (and embedded in websites)

Great for quickly putting a model together and thinking through ideas

Easy to build

Easy to interact with models

East to extract data and create plots

Excellent documentation: http://ccl.northwestern.edu/netlogo/docs/

Example - Segregation (Schelling)

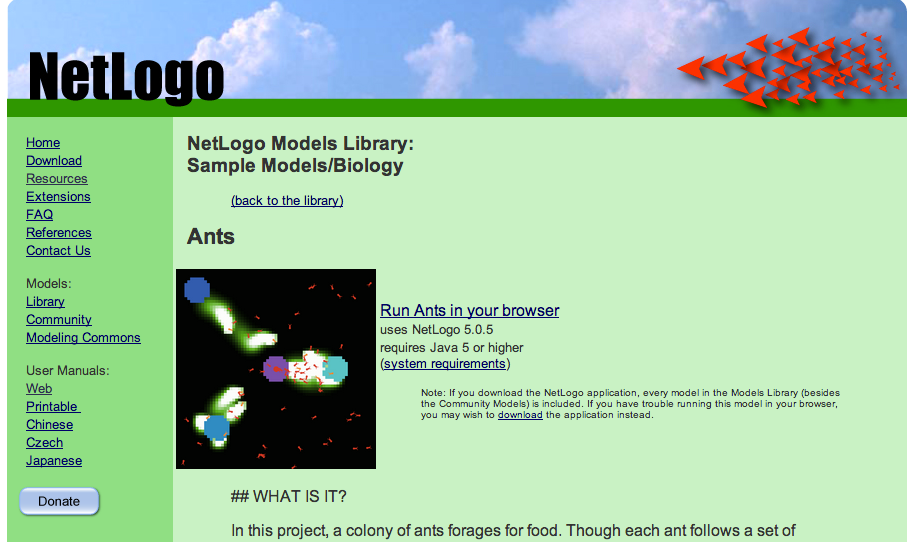

Example - Ants

NetLogo for Crime Analysis

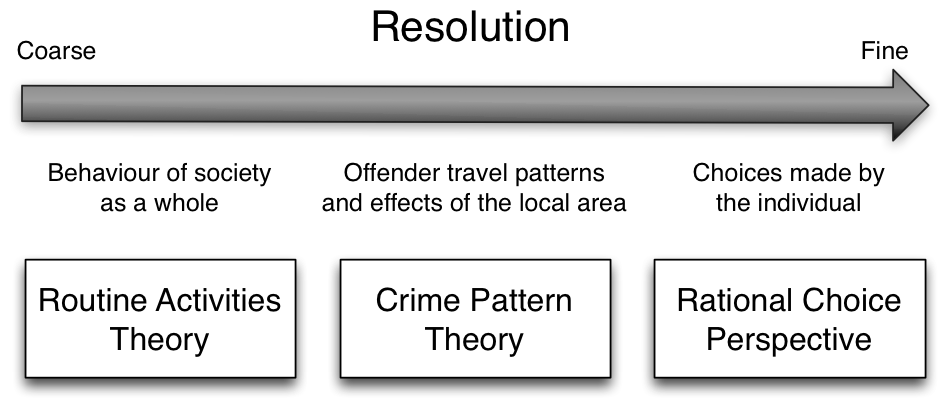

Example: Exploring crime theory

Birks et al. (2012)

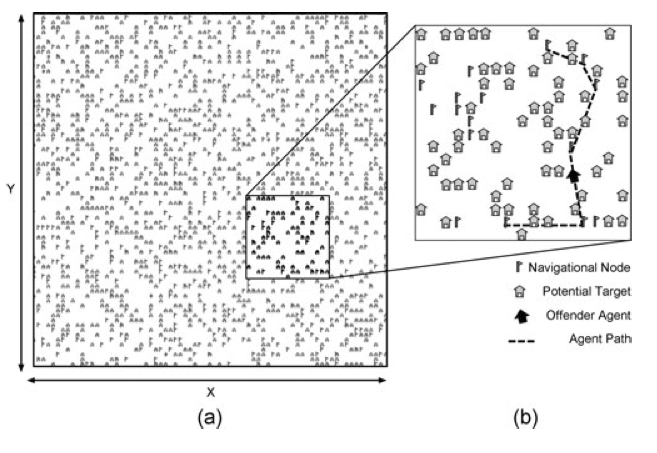

Randomly generated abstract environments

Theoretical 'switches'

Rational choice perspective

Routine activity theory

Geometric theory of crime

Compare results to expected outcomes:

Spatial crime concentration

Repeat victimisation

Journey to crime curve

NetLogo for Crime Analysis

Example: Exploring crime theory

Results:

All hypotheses are supported

Rational choice has lower influence

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

The Program

NetLogo is "somewhere in the middle"

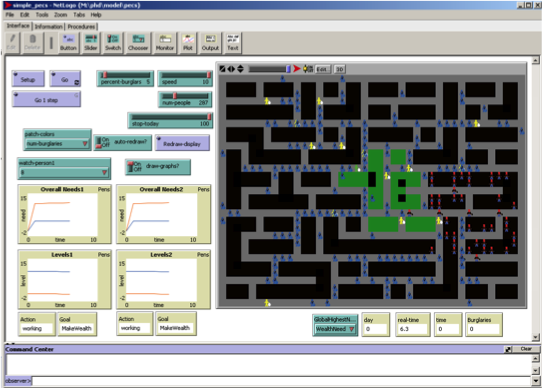

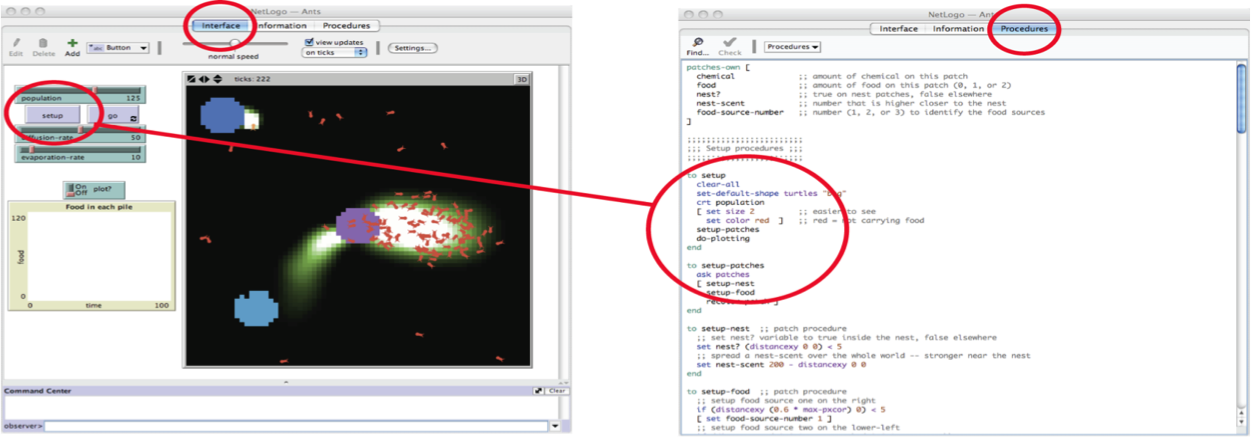

Graphical part (Interface) with sliders, graphs, buttons and a map

Scripting part (Procedures) which contains instructions (code)

The Interface

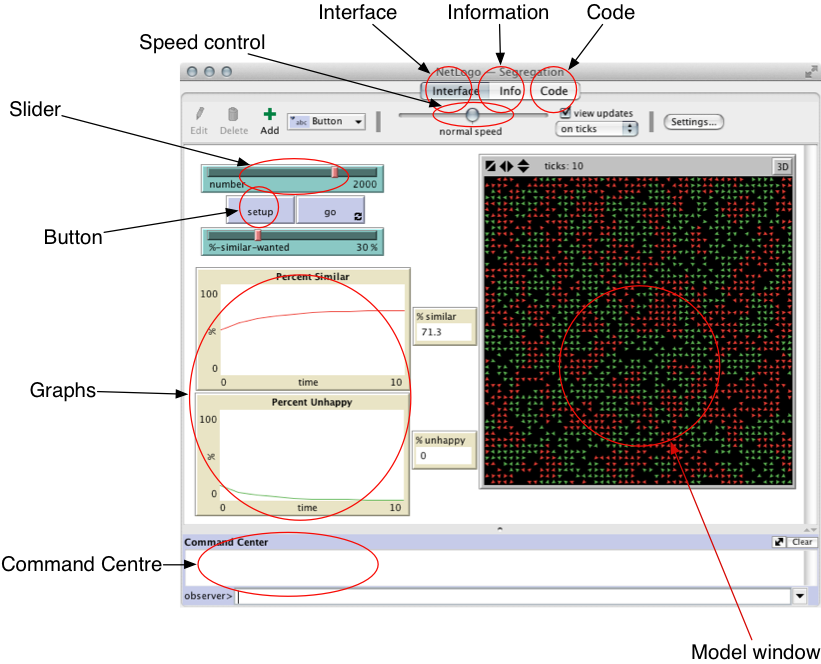

Interface Components

Switch		Slider
Button		Monitor
Graph

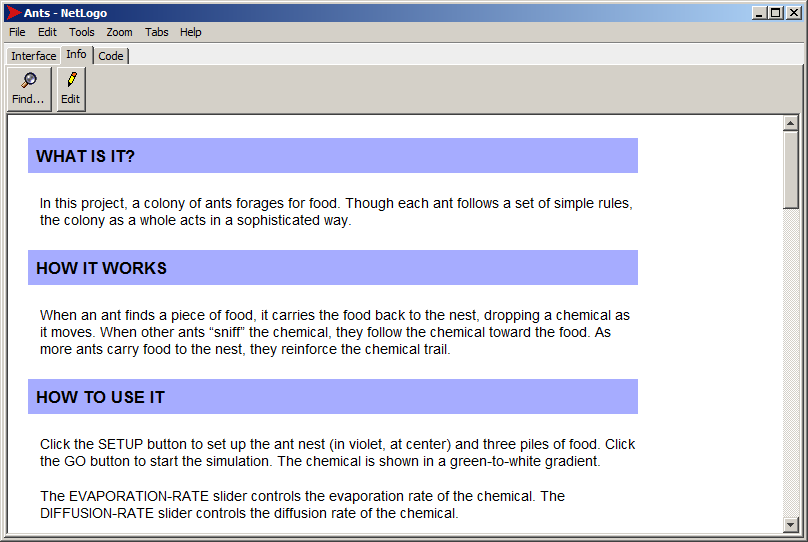

The Information Tab

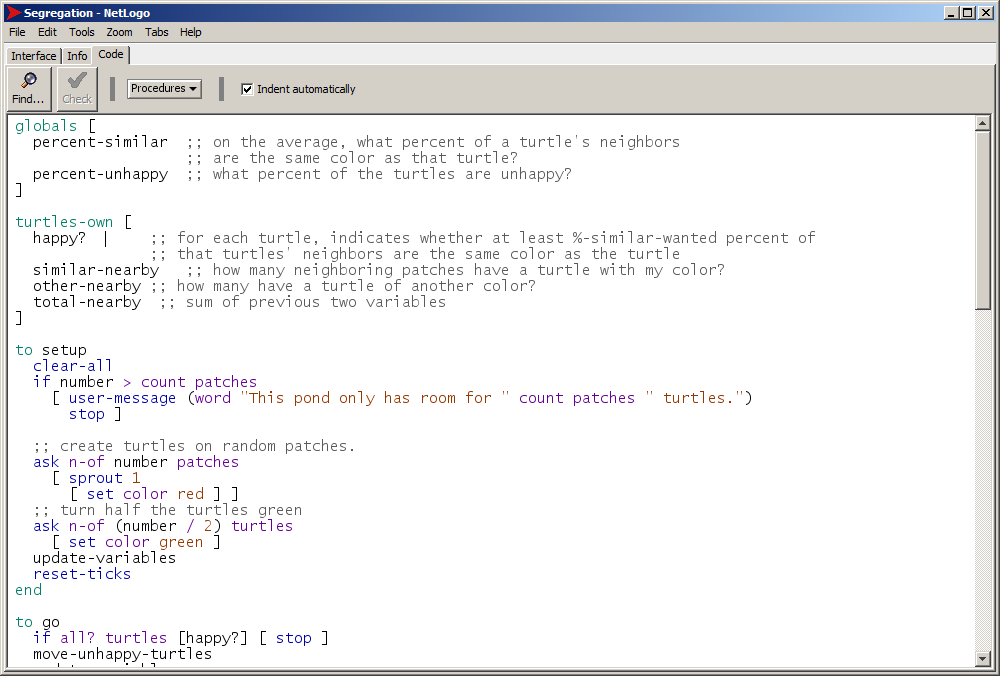

The Program - Code

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

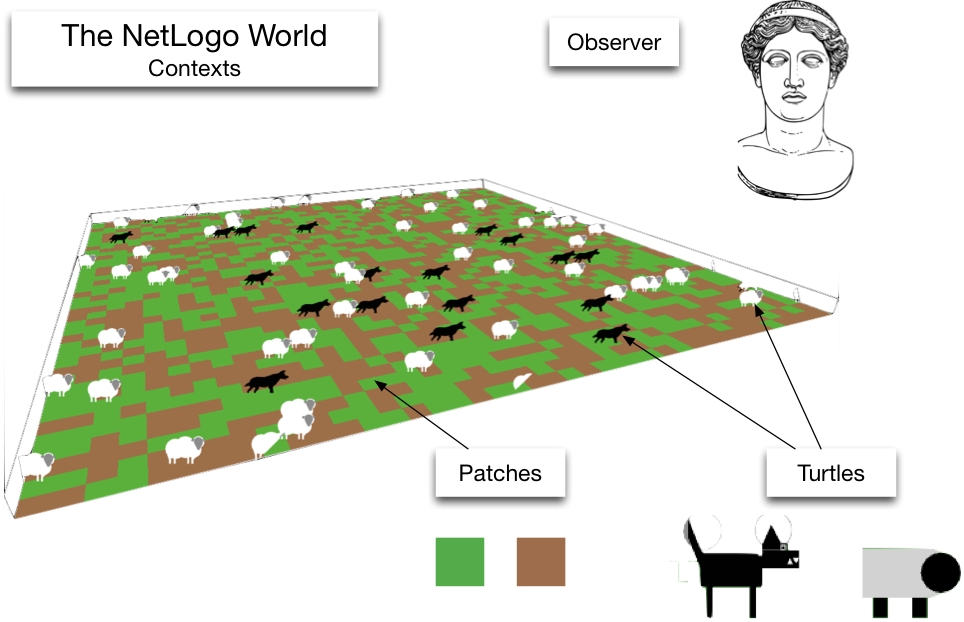

Turtles, Patches and the Observer

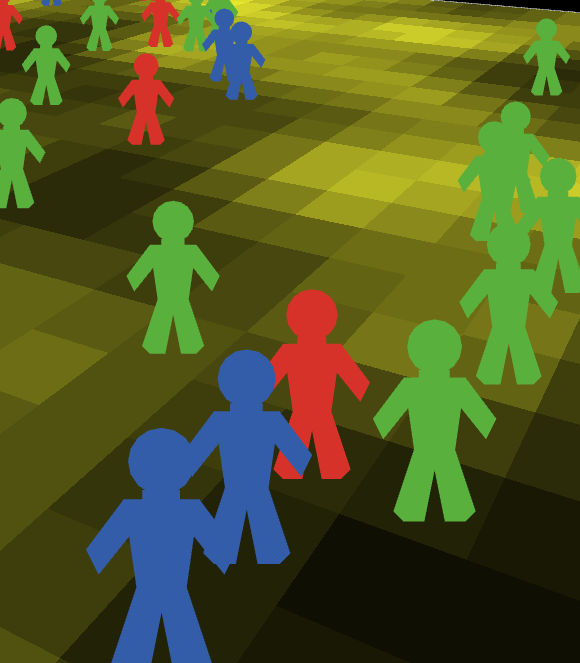

There are two types of objects in NetLogo: turtles and patches.

Both are agents

They have rules that determine their behaviour

They can interact with other agents

Main differences:

Patches cannot move

You can create different types of 'turtle' (e.g. person, dog, cat, car, etc.)

Turtles, Patches and the Observer

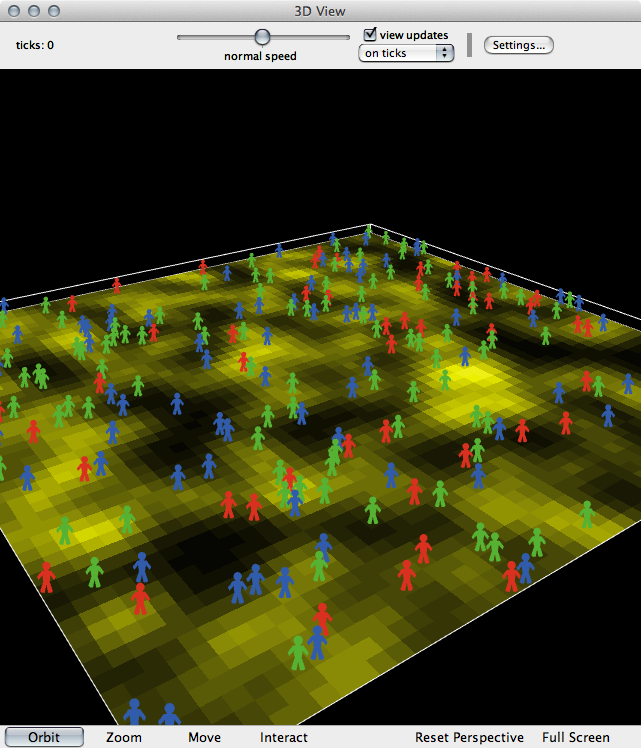

Also important: the observer

The 'god' of a model

Oversea everything that happens, give orders to turtles or patches, control other things like data input/output, virtual time, etc.

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

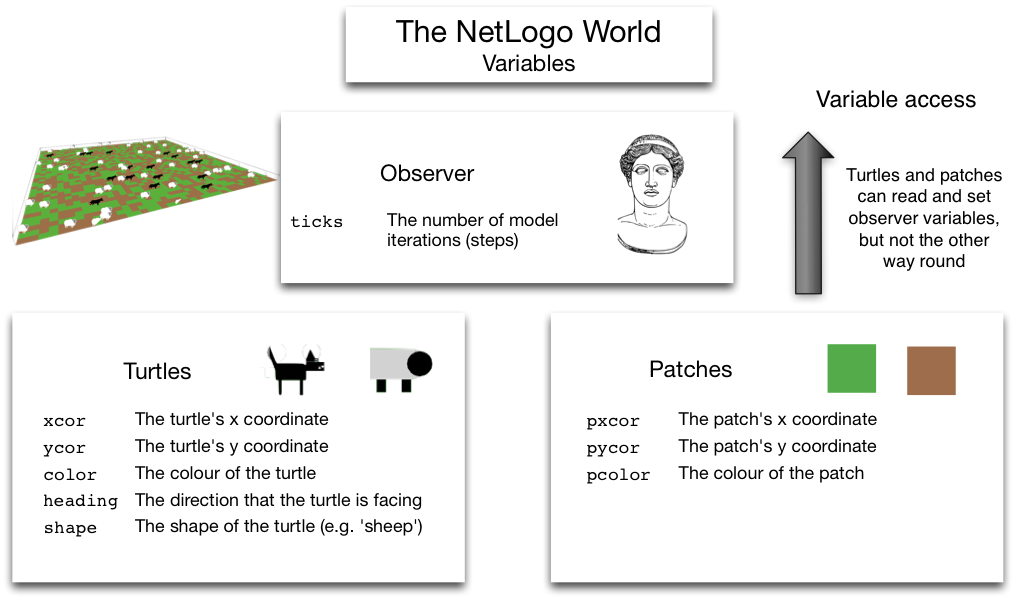

Variables

In programming, variables are a way of storing information. E.g.

my-name = "Nick"

seconds-per-minute = 60

pi = 3.142

infected = True

Variables can belong to different objects in the model.

Examples:

Different objects can have different variable values

Built-In Variables in NetLogo

NetLogo Commands

Commands are the way of telling NetLogo what we want it to do

Some examples

(don't worry, these will be explained properly in the first practical):

Commands are very well documented

Brackets

NetLogo uses both square [ ] and round ( ) brackets.

Round brackets are used to set the order of operations. E.g.:

 2 + 3  × 4 = 14

(2 + 3) × 4 = 20

Square brackets are used to split up commands. E.g.:

ask turtles [ ... ]

the ask command expects to find some more commands inside the brackets.

Contexts

Contexts are NetLogo's way of controlling where commands are sent.

There are three contexts:

1. Observer
2. Turtle
3. Patch

Don't Panic: Lots of opportunity to understand these during the practicals..

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

Flow Control

Programs are recipes

And computers are really, really stupid cooks.

Programmers need to tell the computer exactly what to do, and in what order

Geek joke:

Flow Control and Logic

Usually, NetLogo will run through your code, one line after the other.

But! Sometimes there are two or more possibilities for what to do next.

if statements are one example:

Outline

1. Tools for individual-level modelling
2. Introduction to NetLogo
3. The Program
4. Turtles and Patches
5. Variables
6. Flow Control
7. Writing Nice Code
8. Summary

Finally: Writing Nice Code

Computers don't care what code looks like

But there are some good conventions that we can use to make our code easier to understand by humans

Indentation

New blocks of code should be indented (moved to the right)

E.g. the if statements on previous slide

White space

Different sections of code can be separated by lots of white space

Comments

Comments are special parts of code that NetLogo will ignore.

Anything after a ; is ignored.

Use comments to explain what your computer code does.

Indentation

Whitespace

Comments

Conclusion
