Graphs of Fabric Parameters at a Single Point

Location map for a portion of the Montara Mountain quadrangle, California.  Note the increasing quality of the three DEMs from upper left to lower right; in particular note the east-west striping in the Level 1 DEM.

Fabric graphs

• Point A

• Point B

• Point C

• Point D

Note the general agreement between the 3 DEMs, especially the two Level 2 DEMs.  In many cases the parameters have a significant trend in the organization parameter and fabric directions with a region size of about 1000 m, which represents a major shift from local to more regional fabric.

The color scheme for the graphs:

• Red, 30 m Level 1 DEM

• Blue, 30 m Level 2 DEM

• Green, 10 m Level 2 DEM

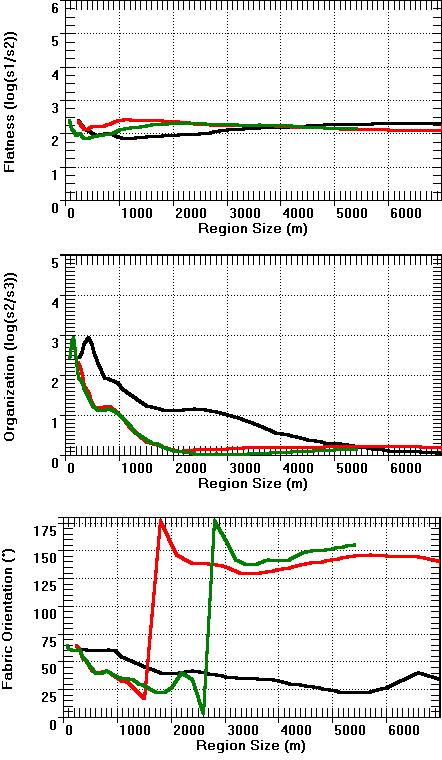

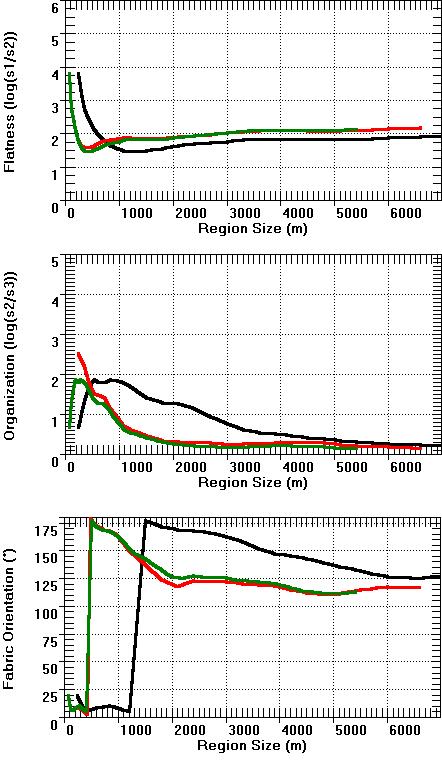

Location A.

Location B.

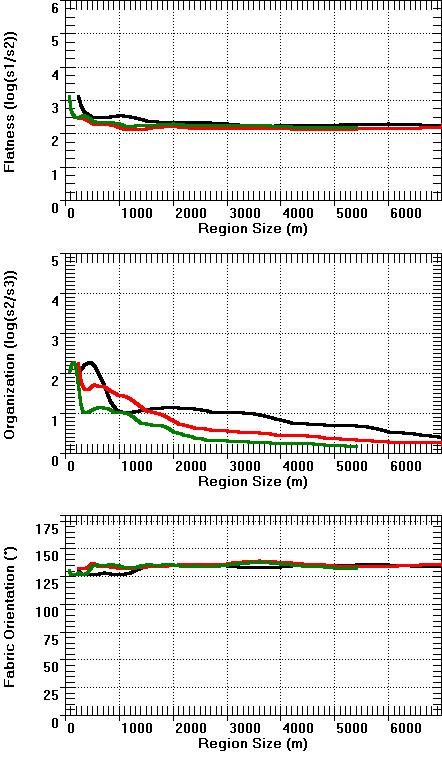

Location C.

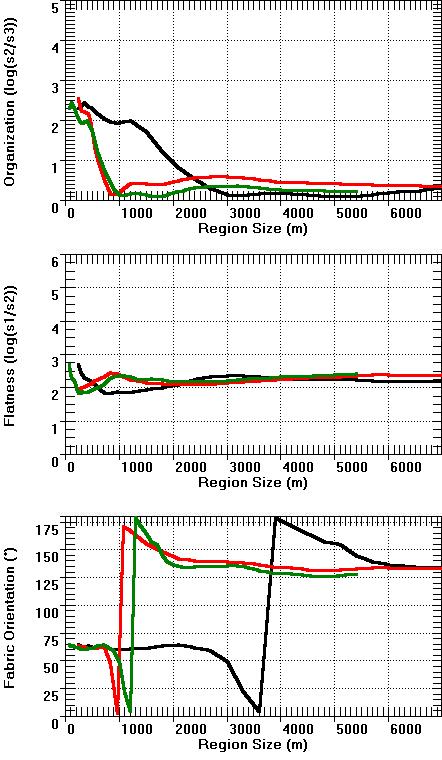

Location D.
